Technical Specifications

Upgrade your window treatments with confidence using our detailed technical specifications for Stitched poles, tracks and blinds. This guide covers all bracket types, fixing options, finials and maximum span allowances, helping you understand exactly which components are best suited to your space. Whether you’re choosing 19mm or 32mm poles, flat or round tracks, or exploring single and double bracket systems, you’ll find clear, accurate measurements and product visuals to support a smooth installation and a perfect finish.

Find measurements below for - metal poles, flat square tracks, round pole tracks, double poles, double tracks.

All measurements in mm

Poles

We offer two metal pole diameters - 19mm and 32mm - designed to suit a wide range of window styles and fabric weights. For bay windows, our 19mm poles are available pre-bent to ensure a precise fit and smooth curtain movement around corners. Explore all finishes and customise your pole style here

All measurements in mm

19mm Poles

Maximum single pole length 2.4m span. Maximum pole length without central bracket is 2m. Extension brackets and recess brackets available on request.

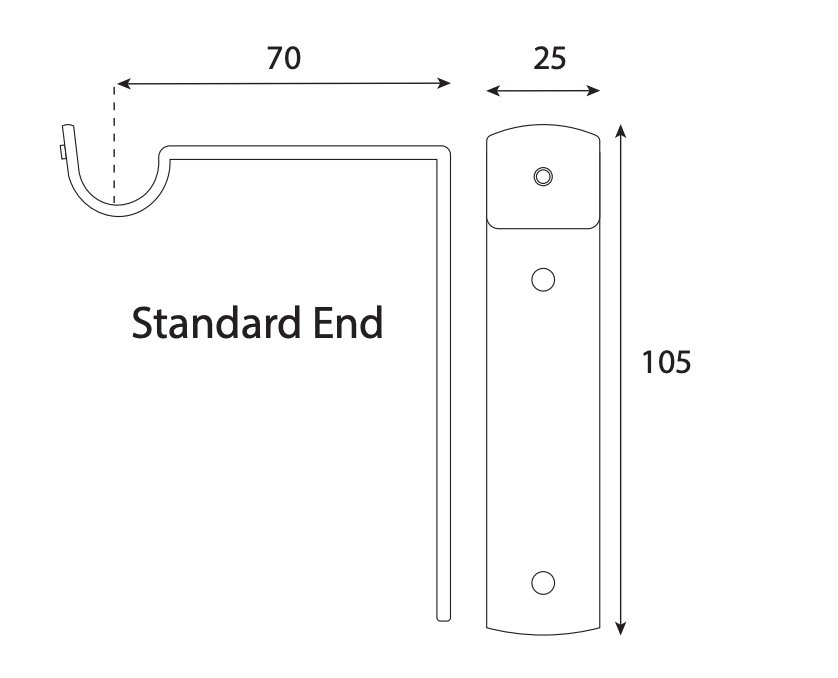

Standard End Bracket

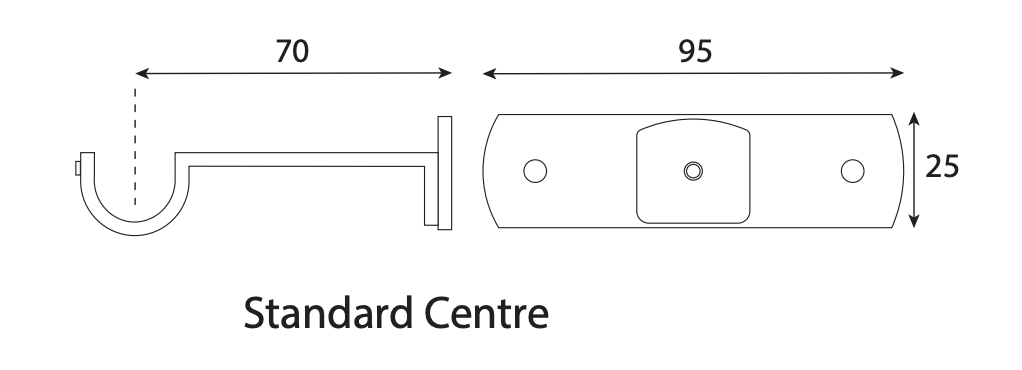

Standard Central Bracket

32mm Poles

Maximum pole length without central bracket 2.4m. Extension brackets and recess brackets available on request.

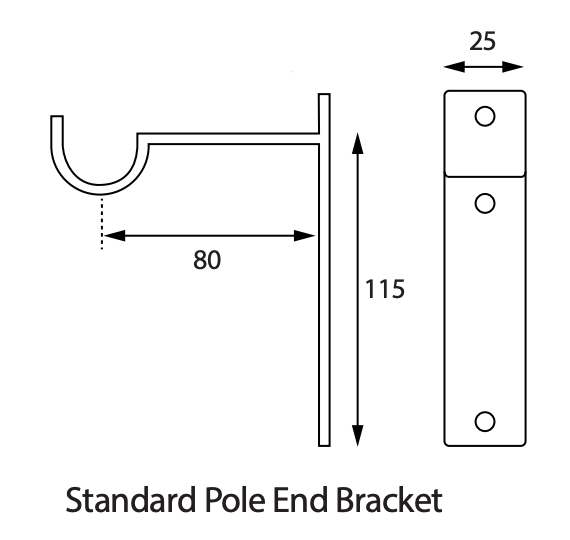

Standard Pole End Bracket

Standard Central Bracket

32mm/19mm Double Poles

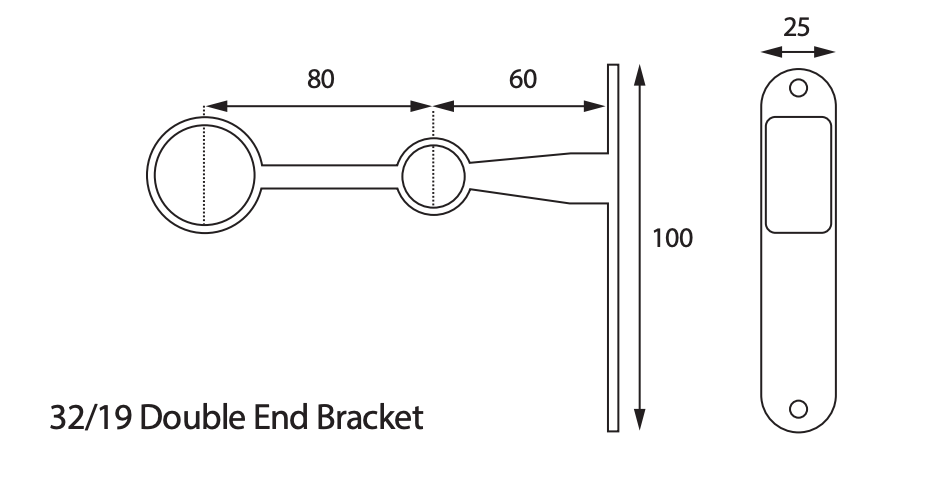

Double Pole End Bracket

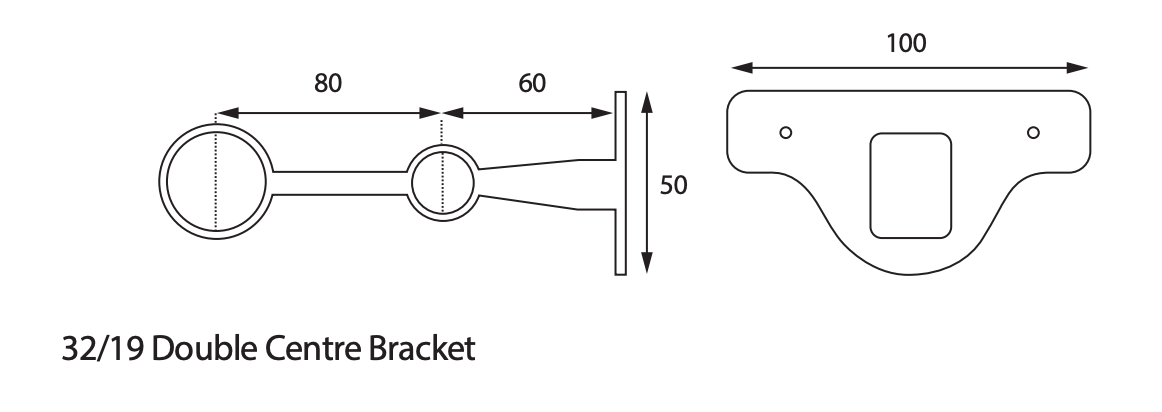

Double Central Bracket

Tracks

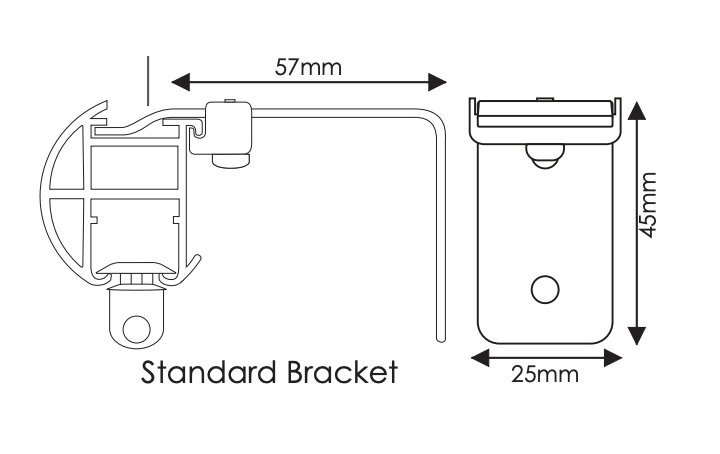

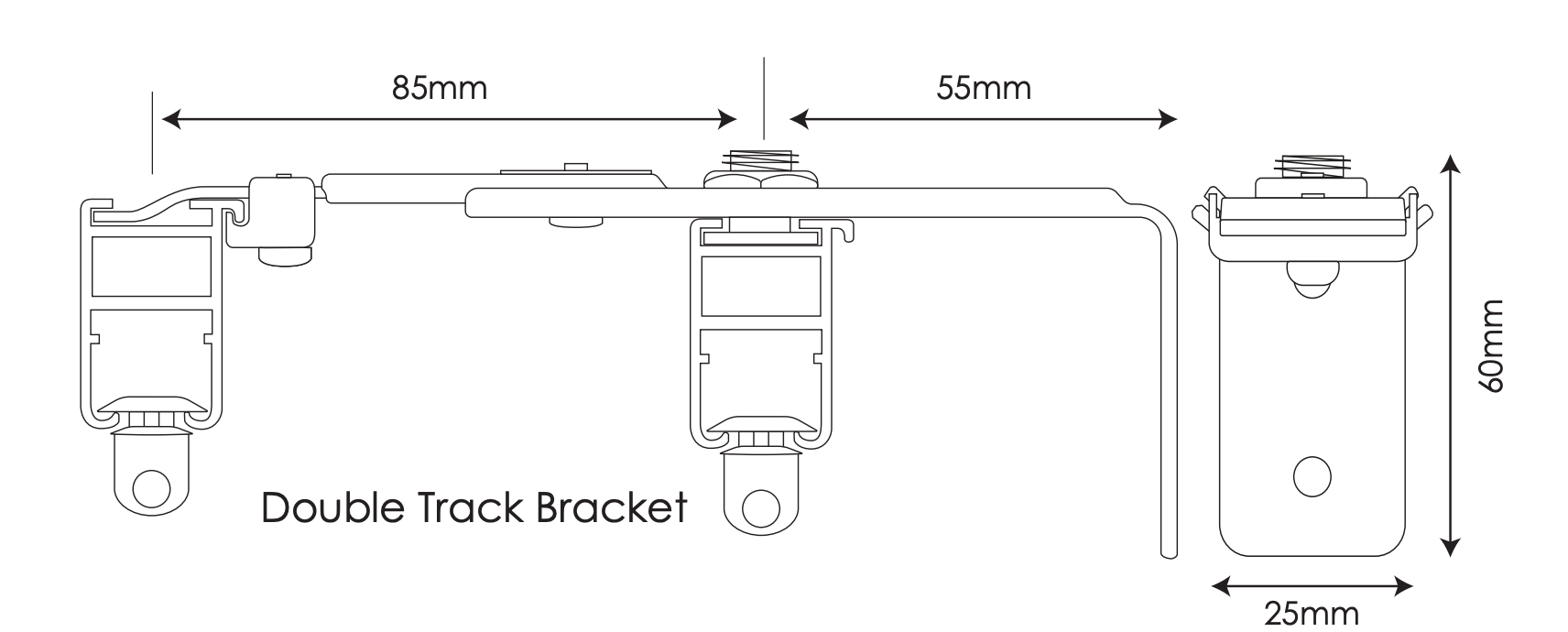

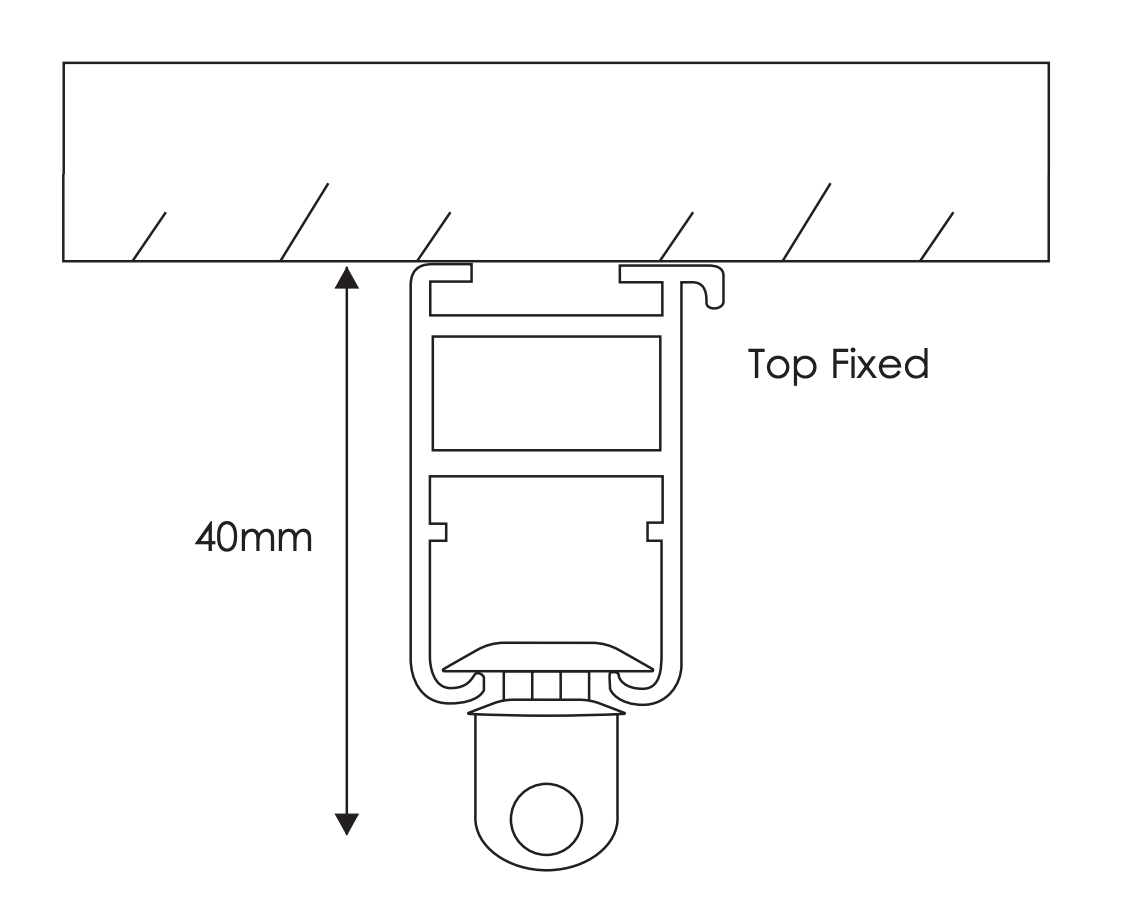

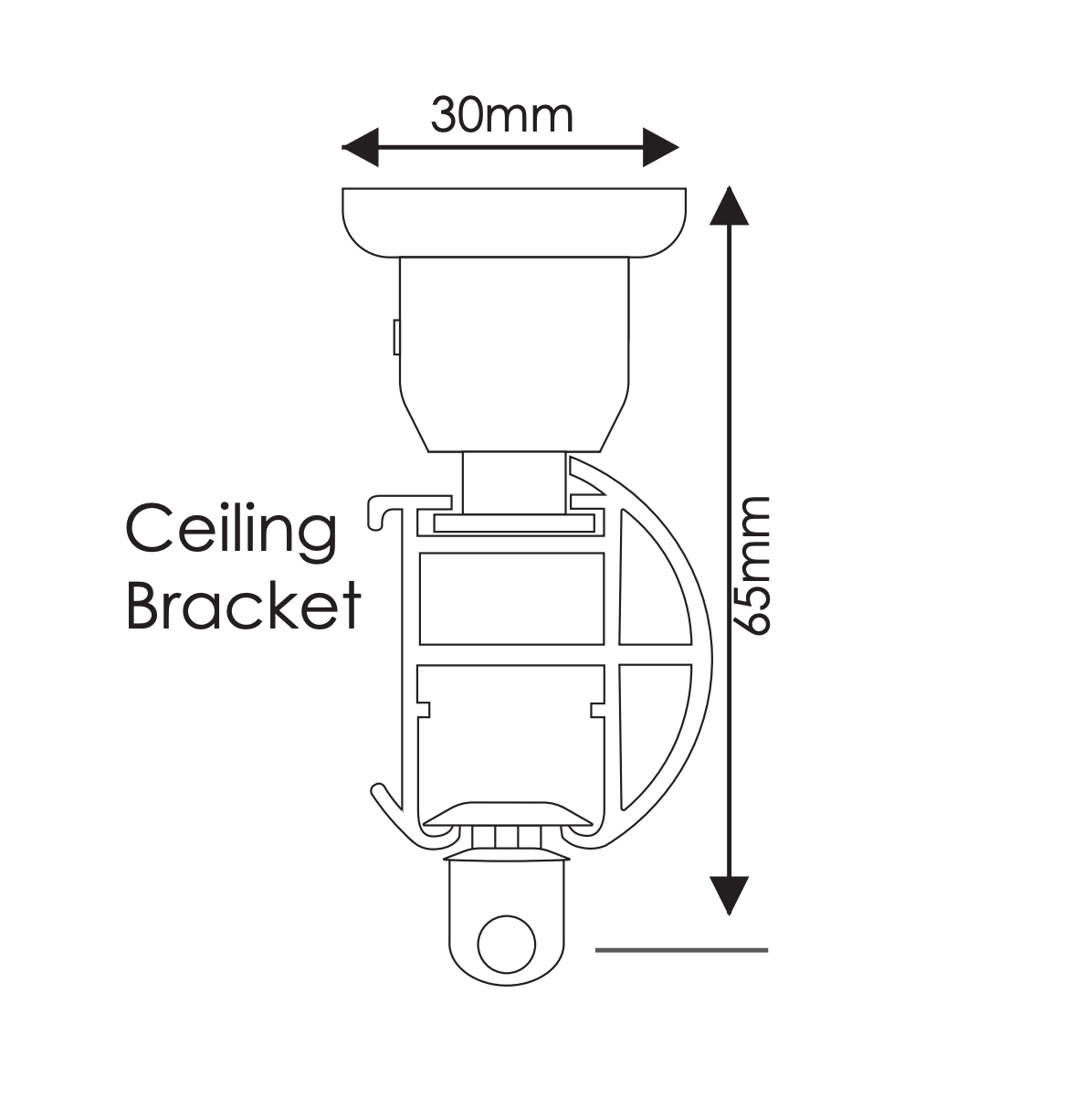

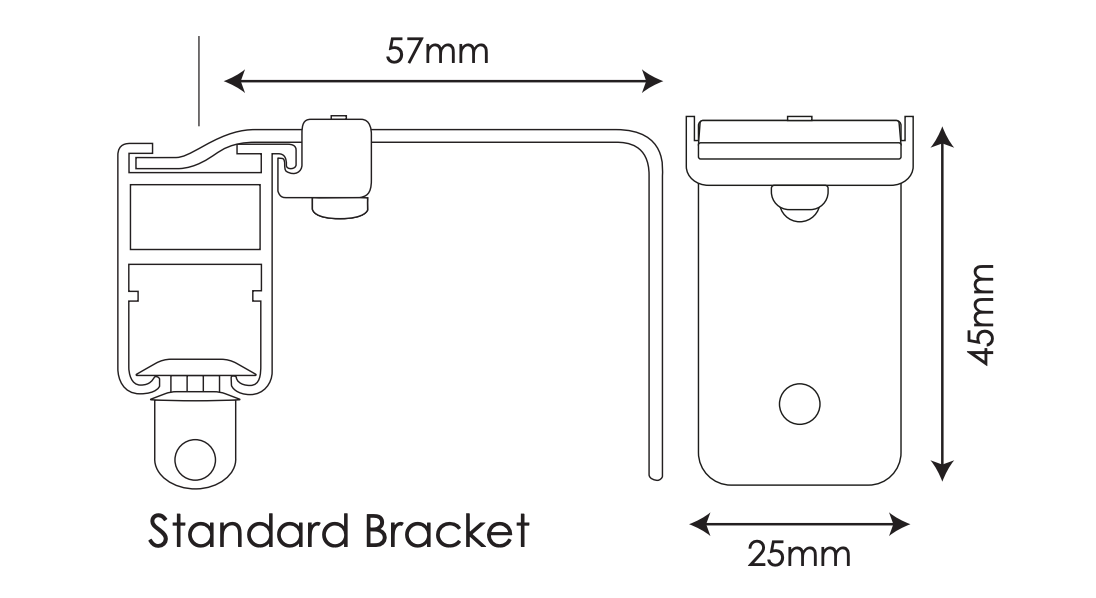

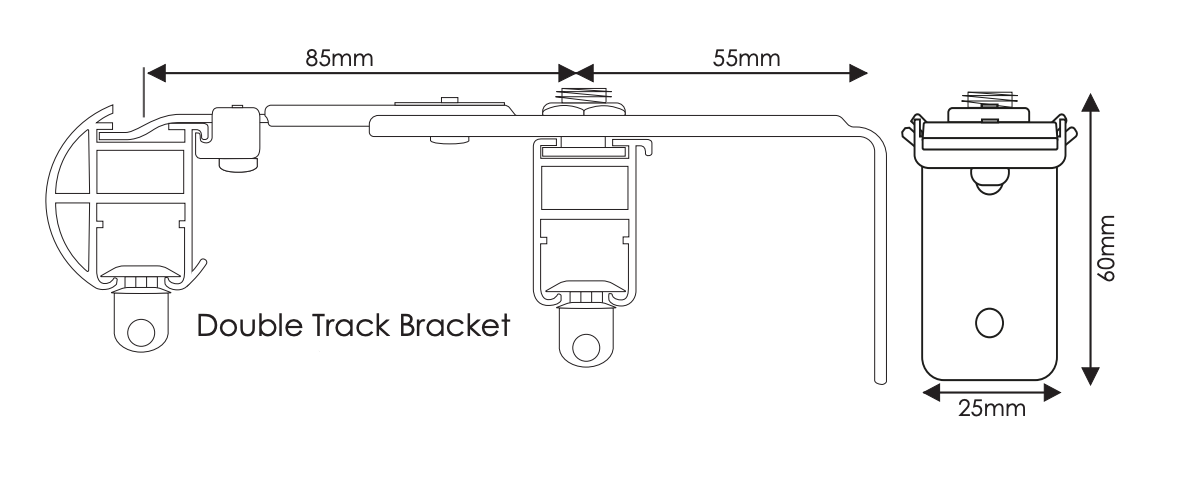

We offer two track styles to suit different interiors: a square flat track and a round pole-track, both available as ceiling-mounted or wall-mounted options. For layered window treatments, double tracks are also available. In a double configuration, the front is your chosen finish while the back track is always a discreet square profile designed to sit neatly behind the main track.

When installing ceiling mounted brackets we recommend these to be a minimum of 10cm away from the wall. When a wave heading is chosen on a double track, only the front curtain will have surf gliders.
